2008 Atlas Copco RD20 III
SOLD – This machine is no longer available.
Item #: 3813
Price: Call
Hours: 300
Description:
* Less Than 300 Frame Hours
Ready For Drilling with limited warranties on major components included!

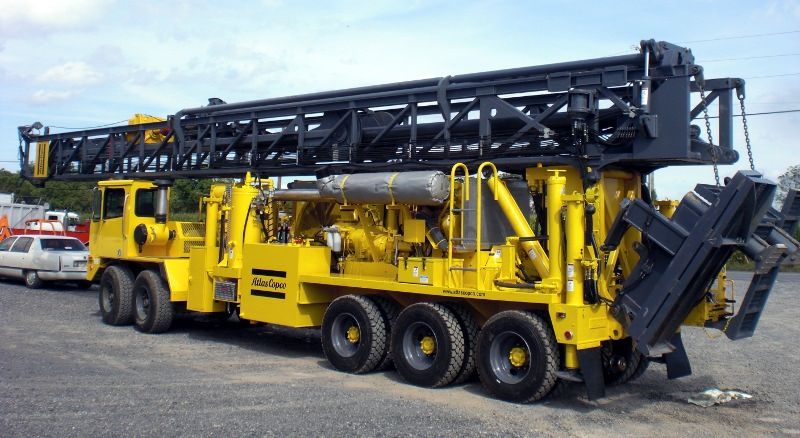

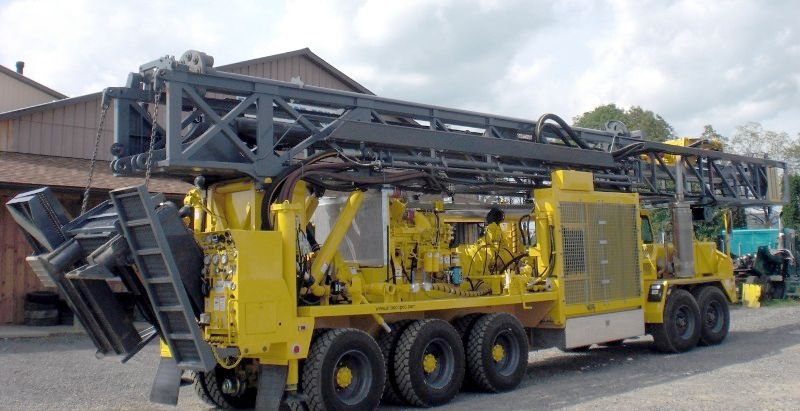

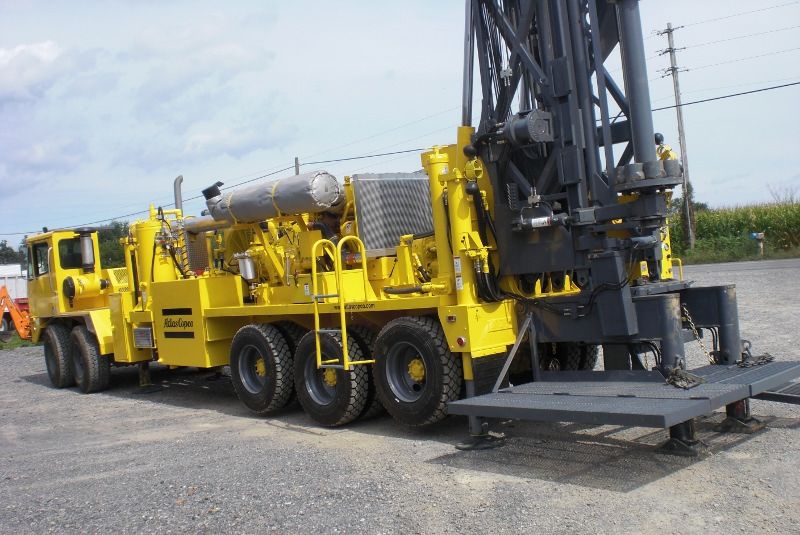

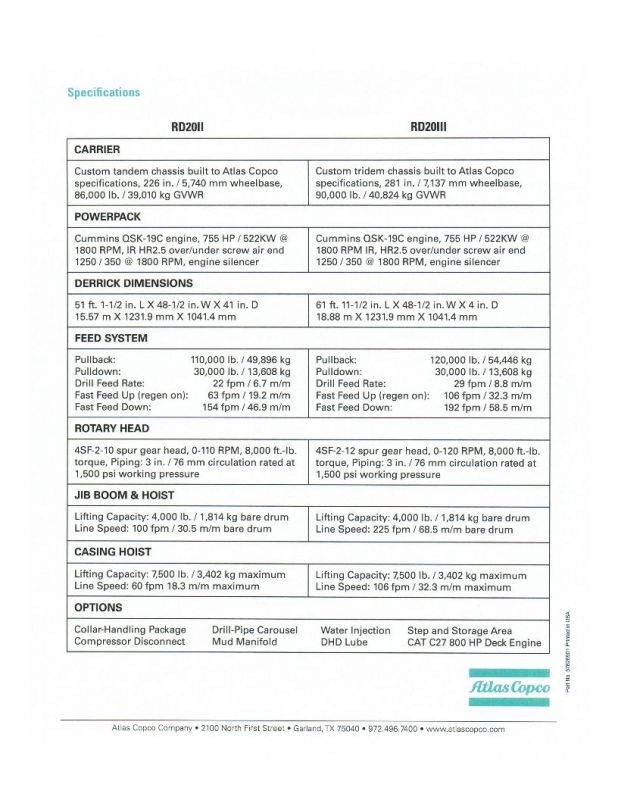

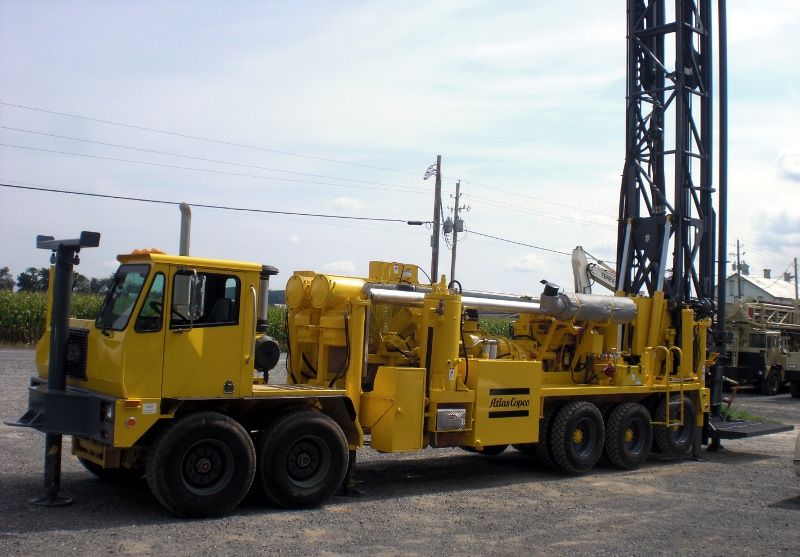

CARRIER
* Mounted on a Custom Tridem chassis built to Atlas Copco (5 axles) - VIN#: 1CYDGV5808T048289
* specifications, 281 in. / 7,137 mm wheelbase
* 90,000 lb. / 40,824 kg GVWR

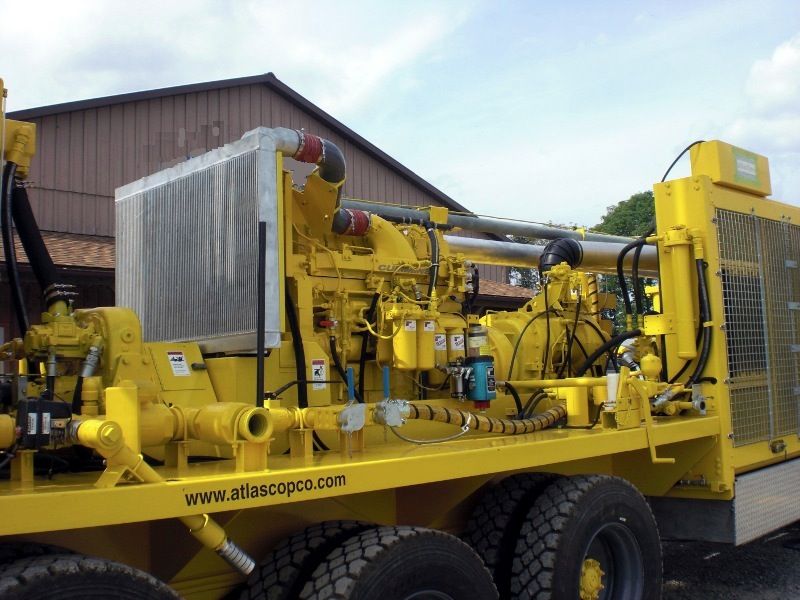

* Cummins QSK-19C diesel deck engine (755 HP / 522KW and 1800 RPM)
* IR, HR2.5 over/under screw air end 1250 cfm / 350 psi (1800 RPM and engine silence)

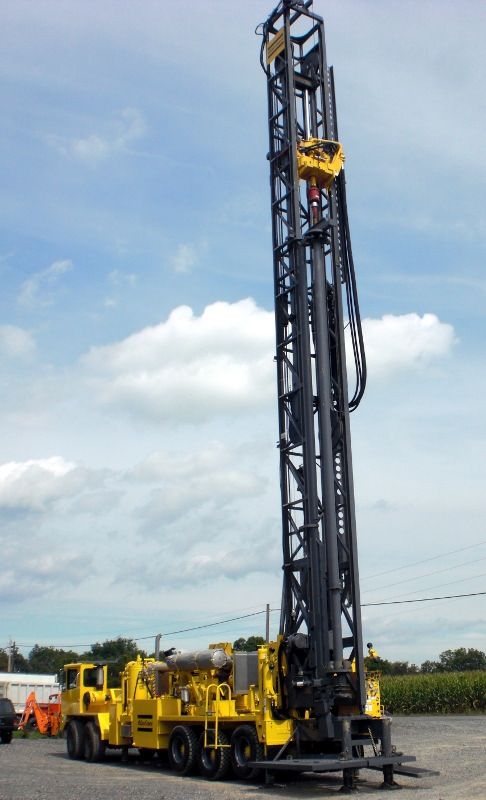

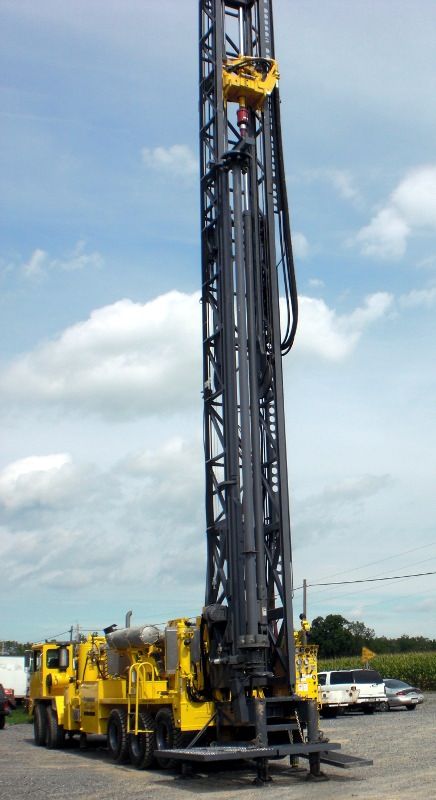

DERRICK DIMENSIONS
* 61 ft. 11-1/2 in. L X 48-1/2 in. W X 4 in. D
* 18.88 m X 1231.9 mm X 1041.4 mm
FEED SYSTEM
* Pullback: 120,000 lb. / 54,446 kg
* Pulldown: 30,000 lb. / 13,608 kg
* Drill Feed Rate: 29 fpm / 8.8 m/m
* Fast Feed Up (regen on): 106 fpm / 32.3 m/m
* Fast Feed Down: 192 fpm / 58.5 m/m
ROTARY HEAD
* 4SF (2) 12 Spur Gear Head (0-120 RPM and 8,000 ft.-lb. torque)
* Piping: 3 in. / 76 mm circulation rated at 1,500 psi working pressure
JIB BOOM & HOIST
* Lifting Capacity: 4,000 lb. / 1,814 kg bare drum
* Line Speed: 225 fpm / 68.5 m/m bare drum
CASING HOIST
* Lifting Capacity: 7,500 lb. / 3,402 kg maximum
* Line Speed: 106 fpm / 32.3 m/m maximum
