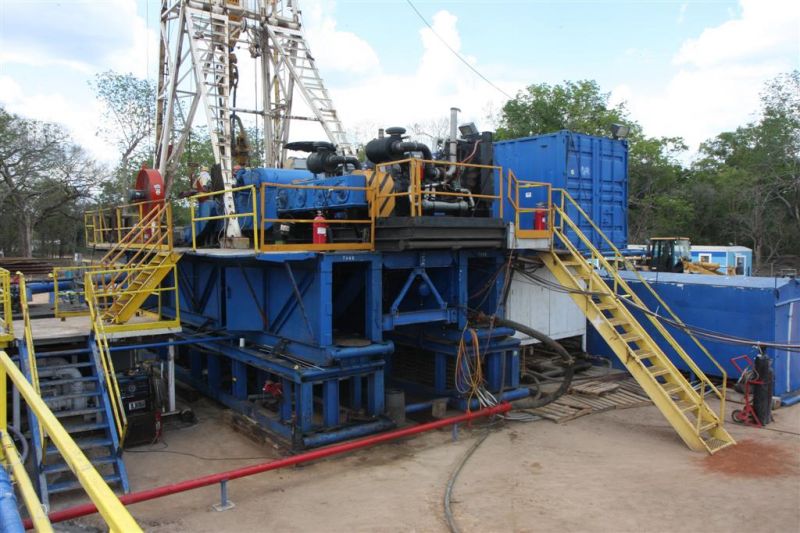

DRILLING 8,200’
Item #: 3247
Price: Call
Description:
SPECIFICATIONS and INVENTORY:
DRILLING DEPTH CAPACITY:
8,200’ w / 3 ½” DP
POWER SYSTEM:
380 KW Generator powered by one (1) 14.1 Liter Detroit Diesel Series 60 Engine with 30 HP Electric Screw Compressor
250 KW Generator powered by one (1) 3306 Caterpillar Engine with 30 HP Electric Screw Compressor
45 KW Transformer for Rig Lighting Supply
75 KW Transformer for Hotel Load
Motor Control Center
DRAWWORKS:
TSM 6000 drawworks w/ 1-1/8” Lebus Groove drum, skid mounted w/ Foster Mod 27 Make-up and Break-out Cat Heads
P-D-15 Hydrotarder Auxiliary Brake coupled w/ Eaton 16CB500 Clutch
3 Speed Transmission, Chain Driven Compound powered by two (2) 12.7 Liter Detroit Series 60 Engines (Set @ 475 HP each) through one (1) Allison TC-955 Torque Converter per engine

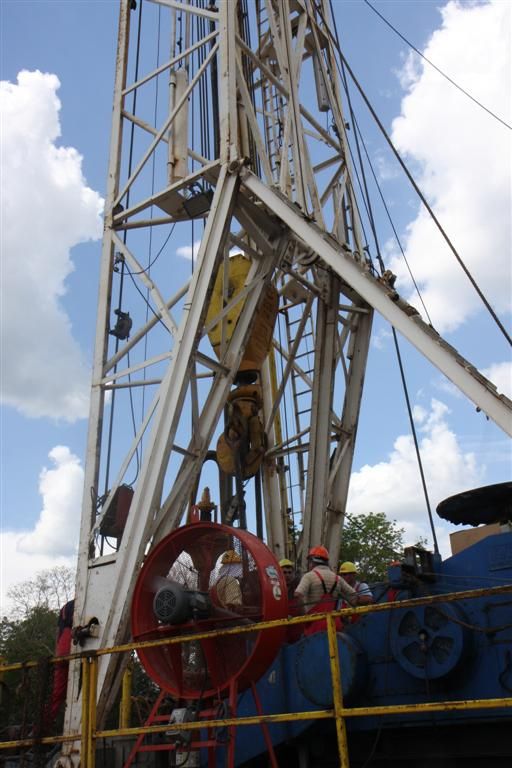

MAST:

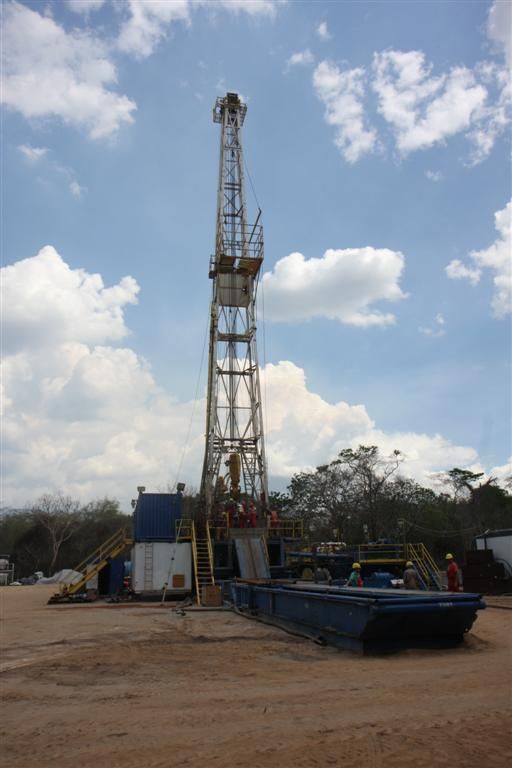

Lee-C-Moore 105’ x 13’ base, 350,000# static hook load, boom pole, tong counter weights, ladder, 4” standpipe
Two (2) 55’ x 3-1/2” kelly hose
Two (2) Type C Wooley 32” Rotary Tongs w/ jaws from 3-1/2” to 8-3/4”
CROWN BLOCK:
Lee-C-Moore four (4) 30” x 1-1/8” cluster sheaves, one (1) each 36” x 1-1/8” fastline sheave
DRILL LINE:
1 1/8” EIPS
SUBSTRUCTURE:
Purpose built 10’high with 350,000# rotary capacity with 150,000# set back capacity and 9’ clear height from rotary beam to ground level
Two (2) Water Pumps 3” x 2” Centrifugal Pump with 25 HP Electric Motor & Start/Stop Station
Intersol Rand H5U 3000# Air Hoist
KELLY:
Two (2) 5 ¼” Square x 37’ drive with 6-5/8” Left-Hand Box top connection and 4-1/2” X-Hole Pin connection
One (1) Square Drive Rotary Bushing
ROTARY TABLE:
17 ½” Petro ZP 175
TRAVELING BLOCK AND HOOK:
McKissick 200 ton block with BJ 150 ton hook
SWIVEL:
150 ton King swivel
MUD PUMPS:

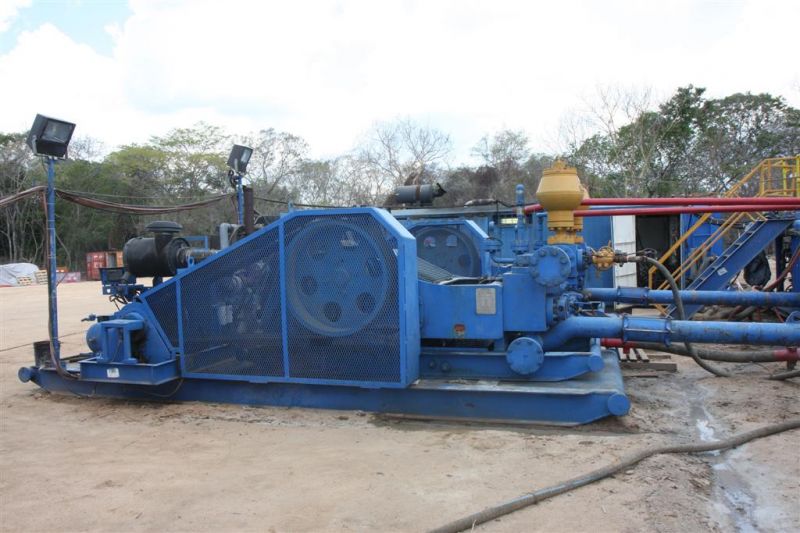

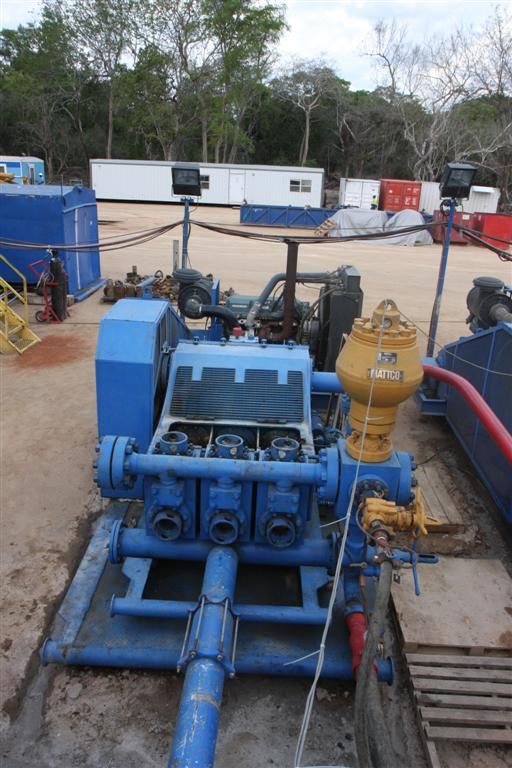

Two (2) EWECO 600 7” x 8-1/2” Stroke triplex pumps rated at 600 HP. Driven by one (1) each 14 liter 60 series Detroit Diesel engine rated at 550 HP
DRILL PIPE:
79 joints of 4 ½” OD with 4-1/2” X-Hole Threads (~2400’)
255 joints of 3 ½”OD with 3-1/2” IF Threads (~8,100’)
DRILL COLLARS:
Thirty (30) 6 ½ x 2 ¼ with 4-1/2” X-Hole Threads
Six (6) 8” with 6-5/8” REG Threads

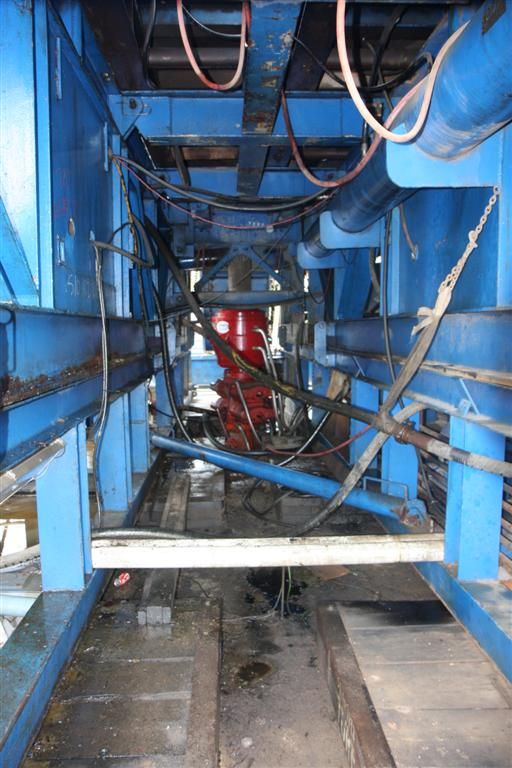

ANNULAR PREVENTER:
13-5/8” 3M Hydril GK Type, Flange Bottom & Studded Top
RAM PREVENTERS:
13-5/8” Shaffer Type LWS Double Ram 3M Studded Top & Bottom
11” Double Ram 3M Studded Top & Bottom

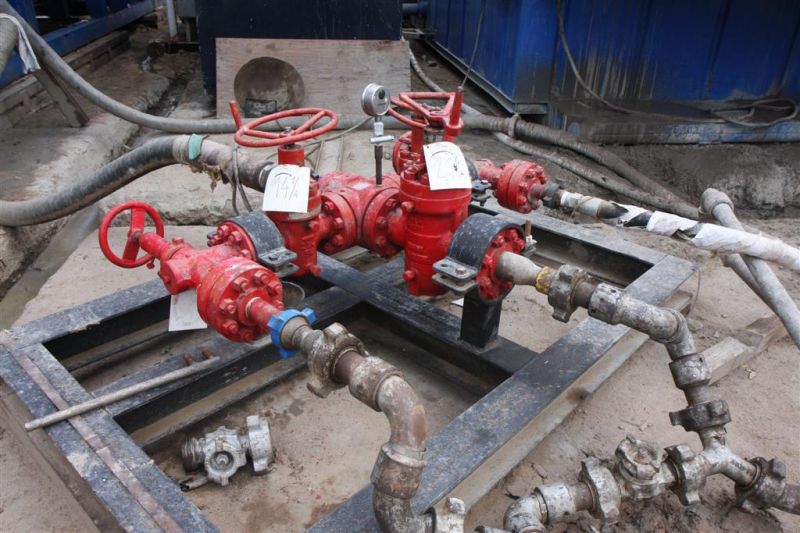

CHOKE MANIFOLD:
Two (2) Manual chokes (3M)

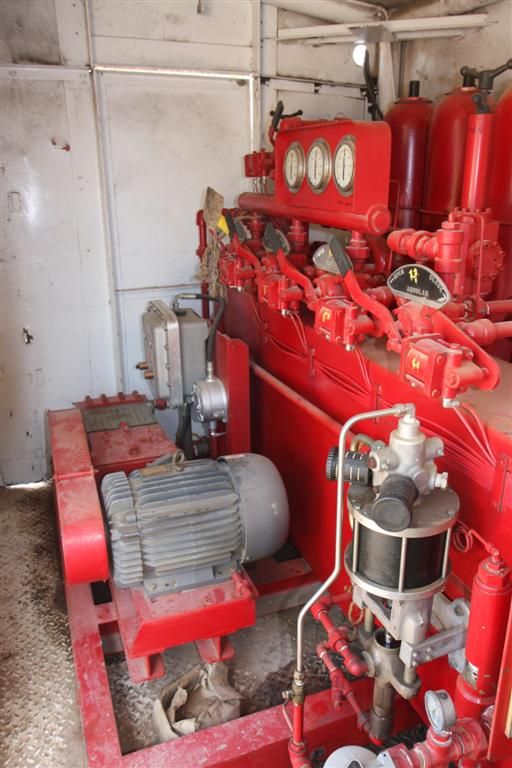

ACCUMULATOR SYSTEM:
4 - Stations, 200 Gal
MUD TANK SYSTEM:
Two (2) tanks, 700 BBL total capacity, sloped bottoms w/dump gates, sand trap 100 BBL capacity
Two (2) 10 HP Pit Agitators
One (1) 100BBL premix tank w/mixing hopper & work platform

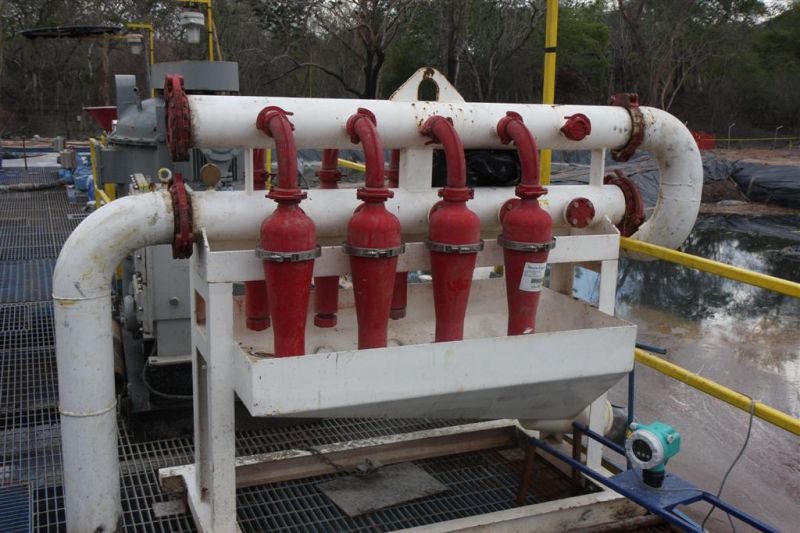

One (1) 8-cone Desilter w/ 6” x 6” Centrifugal pmp w/ 50 HP electric motor

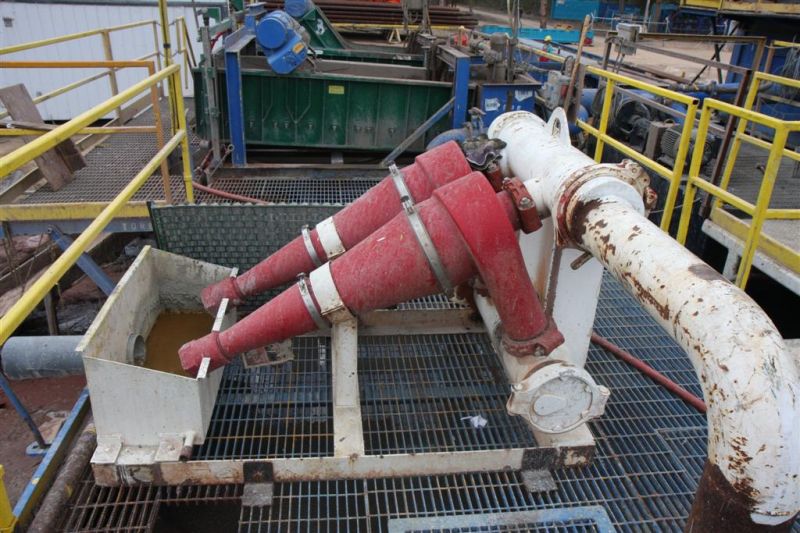

One (1) 2-cone Desander w/ 6” x 6” Centrifugal pmp w/ 50 HP electric motor

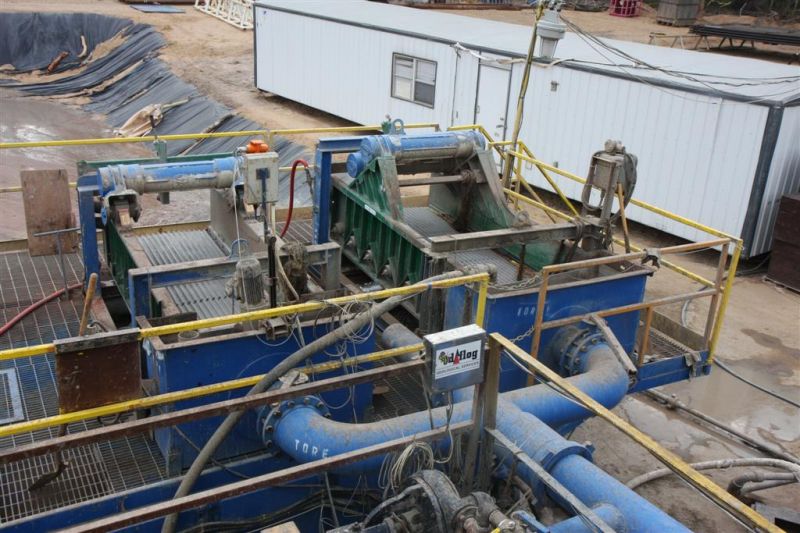

Two (2) shale shakers, Derrick Flowline Cleaner w/ single deck, single motor

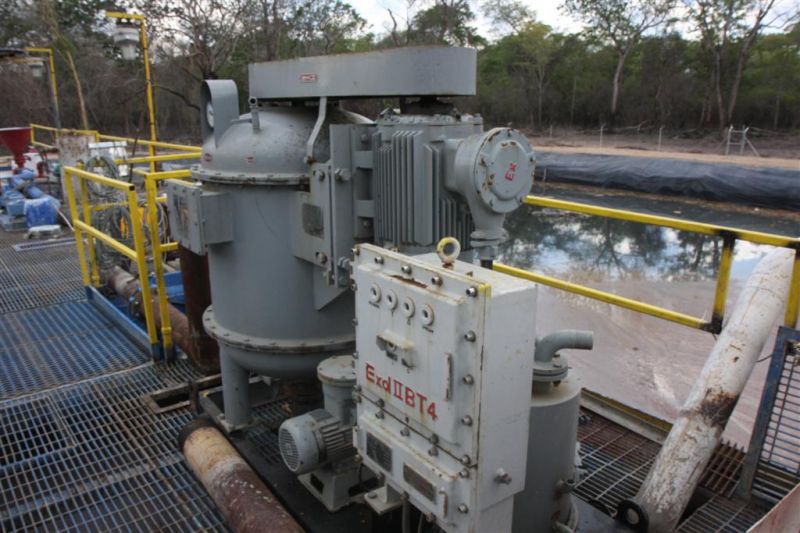

One (1) Vacuum Degasser with piping and electric pump
One (1) Trip Tank 50 bbl capacity
One (1) High Flow Hull Hopper
Two (2) 20 HP Grunnman Rupp 4” x 4” Reserve Pump
One (1) 8” x 20’ Earth Pit Jet barrel w/ 2” high pressure jet lines attached
MUD MIXING PUMPS:
Two (2) each 5” x 6” centrifugal pump driven by 50HP electric motor
FUEL TANKS:
Two (2) 6,000 gals Skid Mounted with Fuel Transfer Pumps driven by 1.5 HP electric motors per pump
AUXILIARY EQUIPMENT:
Three (3) 36’ x 8’ x 42” Catwalk & Pipe Basket combined w/ 42” wide V-Door & Lay-Down Post
Drillers Top Doghouse Skid Mounted on 10’ x 40’ x 9’ 6” 600 bbl Water Tank
Pilot II Automatic Driller
Geoligraph 2 pen recorder
0-7 degree drift indicator
One (1) each Elec/Hydraulic wire line machine
One (1) each HU-40 short drum air hoist
Two (2) Mod D-204 Martin Decker Weight Indicators w/ Dead Line Diaphragm Sensor
One (1) 4-1/2” Katch-Kan Type Mud Bucket
One (1) 3” Wayne Gas power Transfer Pump
Ten (10) 20# Fire Extinguishers
One (1) 4-1/2” BJ 150 Ton Bottle Neck Elevators
One (1) 4-1/2” King Oil Tool Square Shoulder Elevator s
One (1) 4-1/2” SDS Rotary Slips
One (1) 4-1/2” Mission Mod 80 Slips
One (1) 5-1/2” Wooley Side Door Elevators
One (1) 5-1/2” Wooley Slips for casing
One (1) 6” Side Door Elevators
One (1) 6-1/4” Wooley Type A Drill Collar Slips
One (1) 8-3/4” Side Door Elevators
Two (2) 3-1/2” x 84” Elevator Links
Six (6) Sets of Pipe Racks
One (1) 13’ Tandem Derrick Dolly
One (1) Rat Hole Shuck (8-3/4” x 40’)
Two (2) Mouse Hole Shuck
Fifteen (15) 4-1/2” XH Pick-up Subs
Three (3) 6-5/8” Regular Pick-up Subs
Twelve (12) Assorted Cross-over Subs
Two (2) Kelly Cock Upper
Two (2) Kelly Cock Lower
One (1) Lot of miscellaneous hand tools
One (1) 20” Side Door Elevators
One (1) 20” CMS-XL Slips
One (1) 13-3/8” Side Door Elevators
One (1) 13-3/8” CMS-XL Slips
One (1) 13-3/8” Single Joint Elevators
One (1) 9-5/8” Side Door Elevators
One (1) 9-5/8” CMS-XL Slips
One (1) 9-5/8” Single Joint Elevators
One (1) 7” Side Door Elevators
One (1) 7” CMS-XL Slips
One (1) 7” Single Joint Elevators
One (1) 3-1/2” “MYT” Slip Type Elevators with Inserts
One (1) 3-1/2” “SDS” Tubing Rotary Slips with Inserts
One (1) 3-1/2” Single Joint Elevators
One (1) 14’ x 56’ Toolpusher quarters & office
