Pioneer 50VE
SOLD – This machine is no longer available.
Item #: 3074
Price: $107,500
Location: OH, USA
Description:

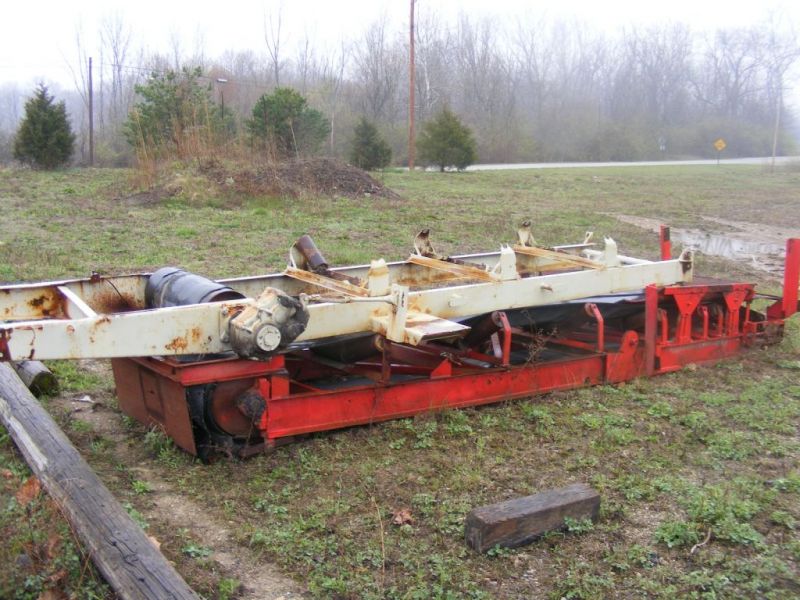

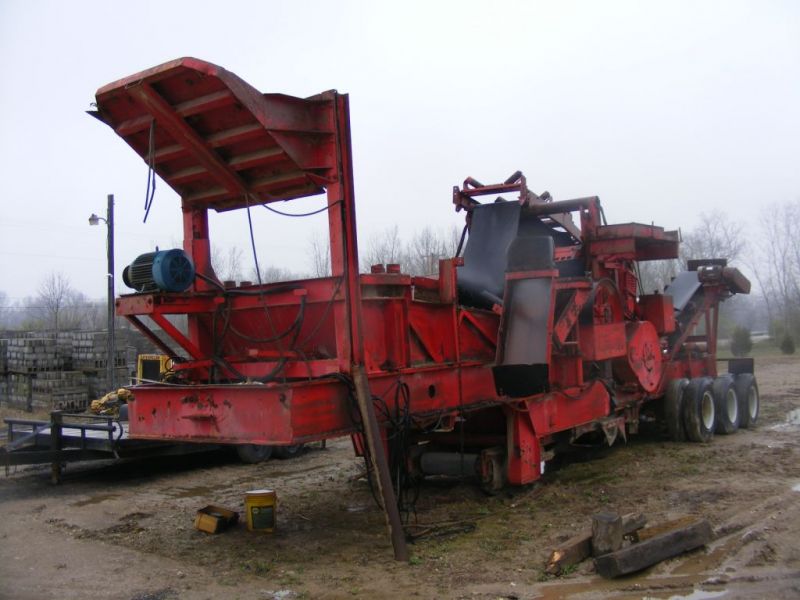

15X36 Jaw crusher, 30x30 triple roll secondary crusher, 36" under crusher conveyor, four deck 5X14 screen w/ two side chutes 30" over head circuit conveyor crushers are powered by cummins 1710 power unit or the plant can be all electric. This plant can make up to four different products if desired. Depending on the feed this plant is capable of 350/400 tons PH. The unit is mounted on a tri-axle carrier has all electric switch gear.

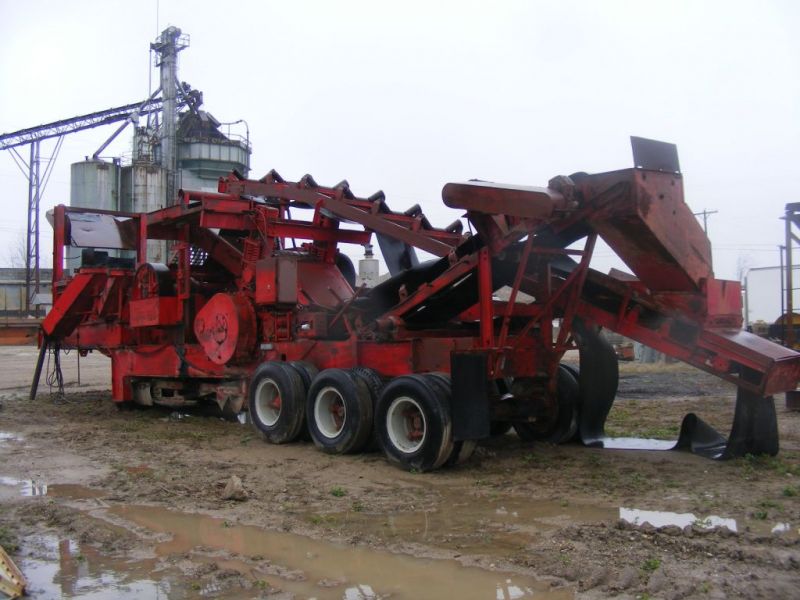

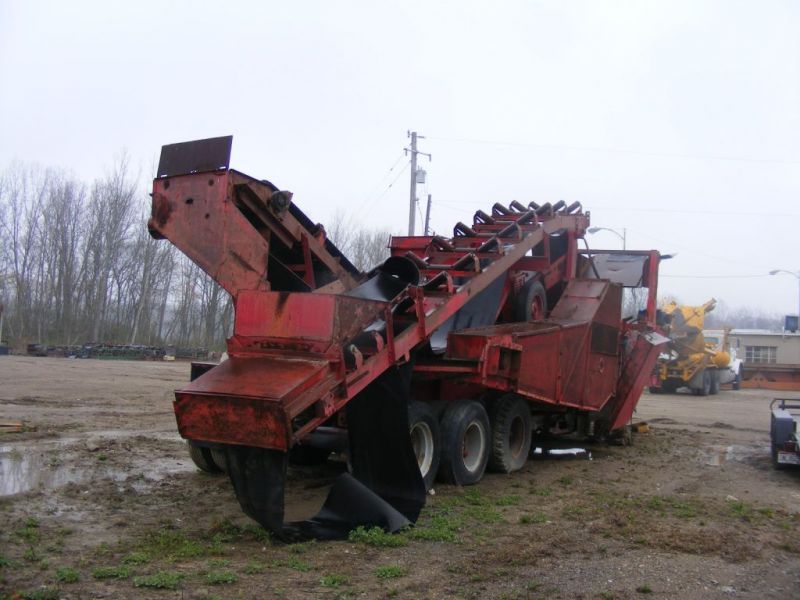

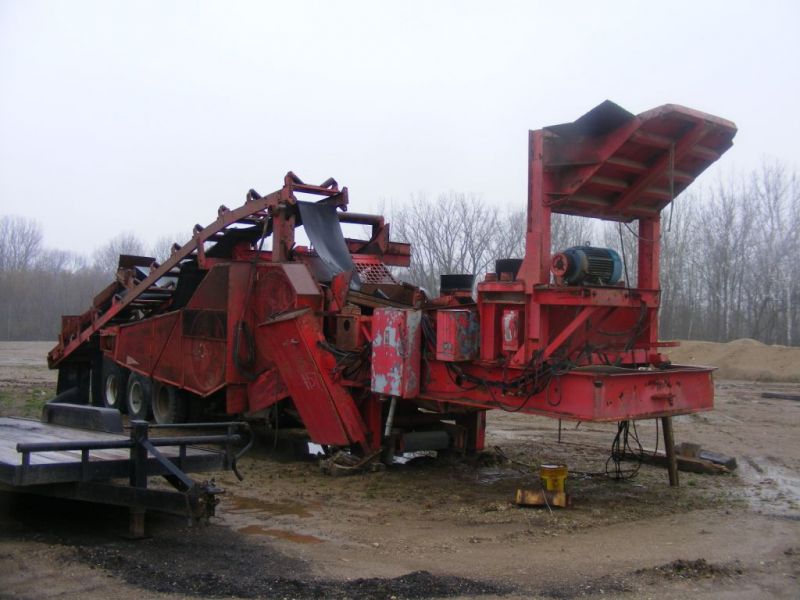

First load is the main load approx dimensions and weights: width is approx 10’ 9”
Length: 50’
Height: 14’
Approx Weight: 85,000 lbs

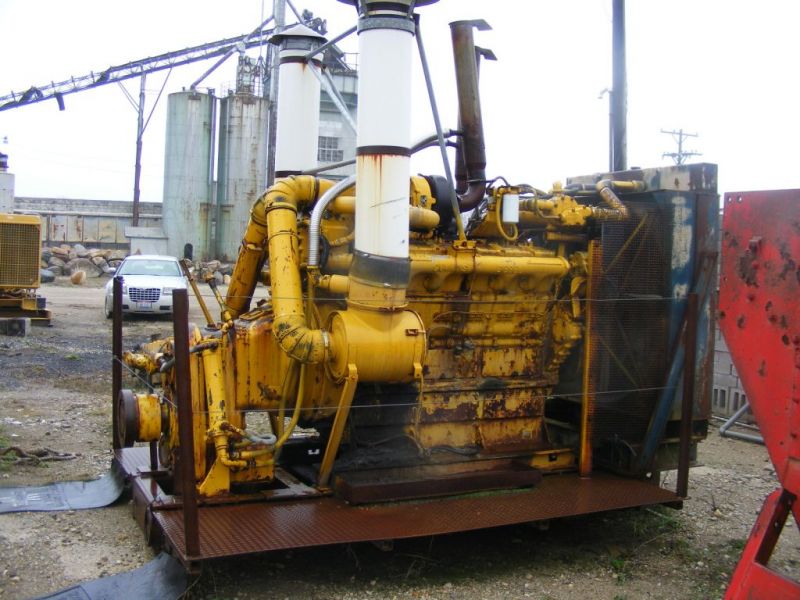

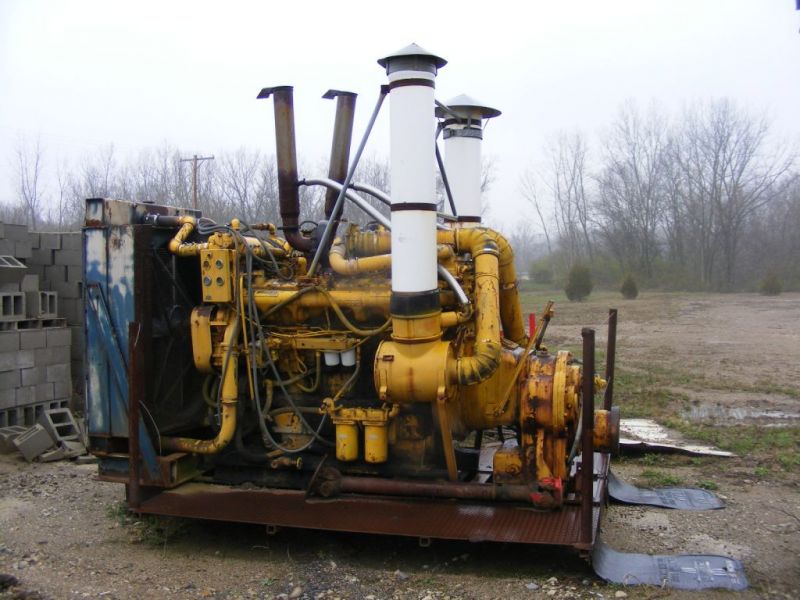

The Cummins power unit is approx: width: 7’ 10”
Length: 11’ 2”
Height:7’3”
Approx Weight 10,500 lbs.

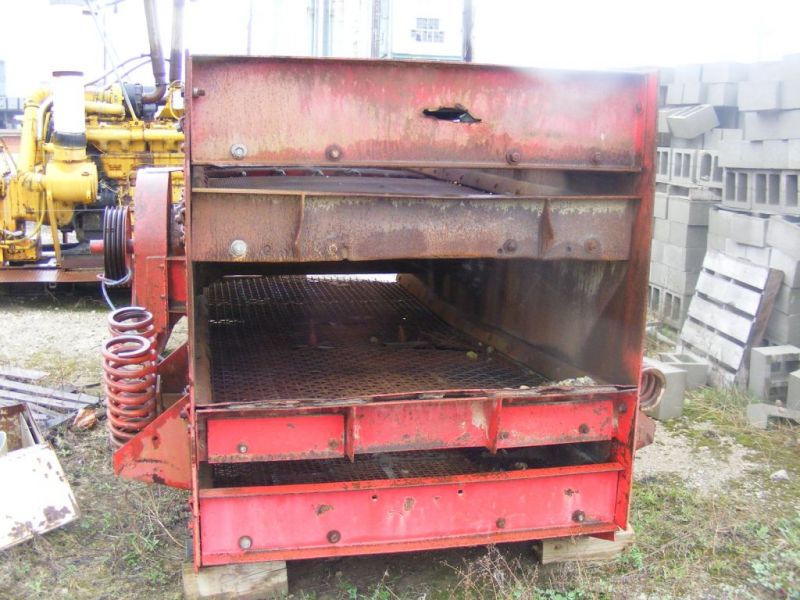

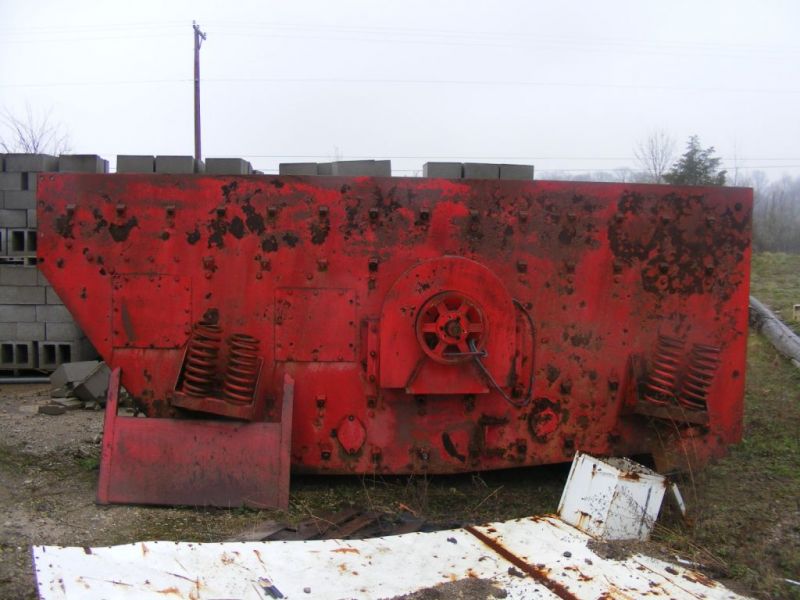

The screen is approx width:8’5”
Length: 15’
Height: 6’ 4”
Approx Weight:25,000 lbs.
