2003 800 Ton Lifting Beam Crane
Item #: 2510
Price: Call
Description:
Deal 800 Ton Lifting Beam Crane for immediate sale and shipment
This crane is available for immediate shipment and is offered at a fraction of its new replacement cost.

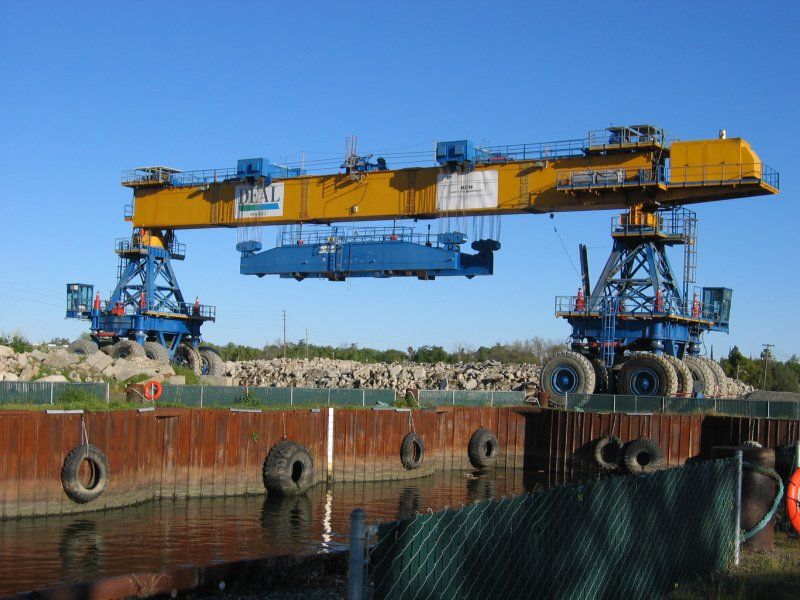

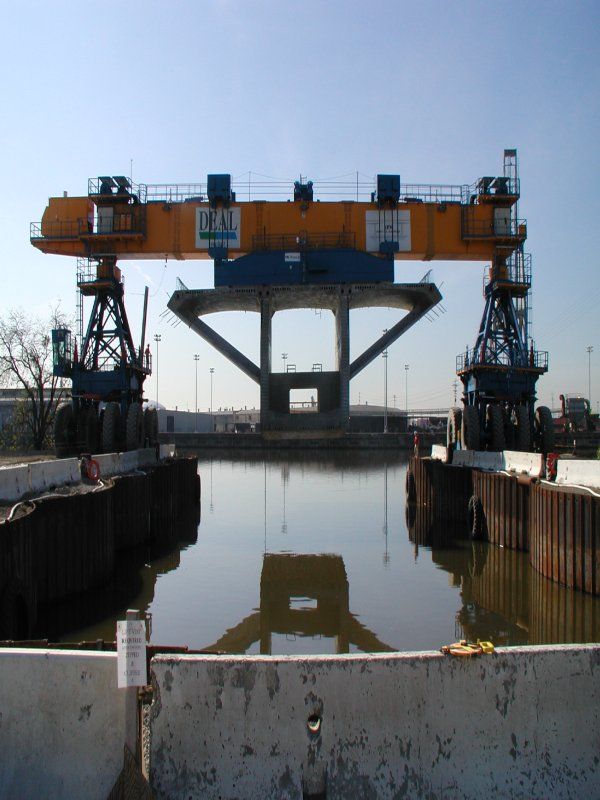

800 Ton self-propelled, Lifting Beam Crane, mounted on rubber tires, built in 2003 and used for one job of lifting prefab concrete bridge sections. Suitable for use in a port or assembly yard for lifting heavy machinery or containers, can be modified for use as a vessel lift.
This is a Deal SRL 800 Ton crane, made in 2003, mounted on (16) 3700R57 tires

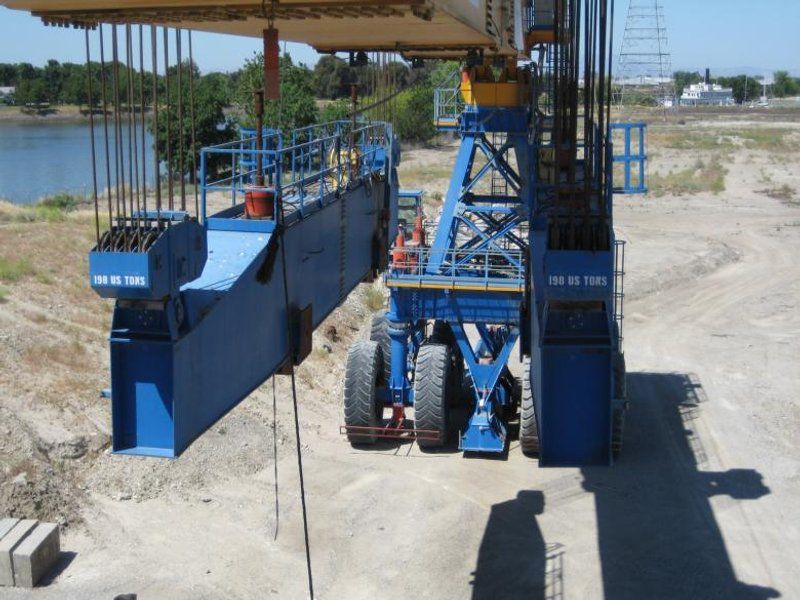

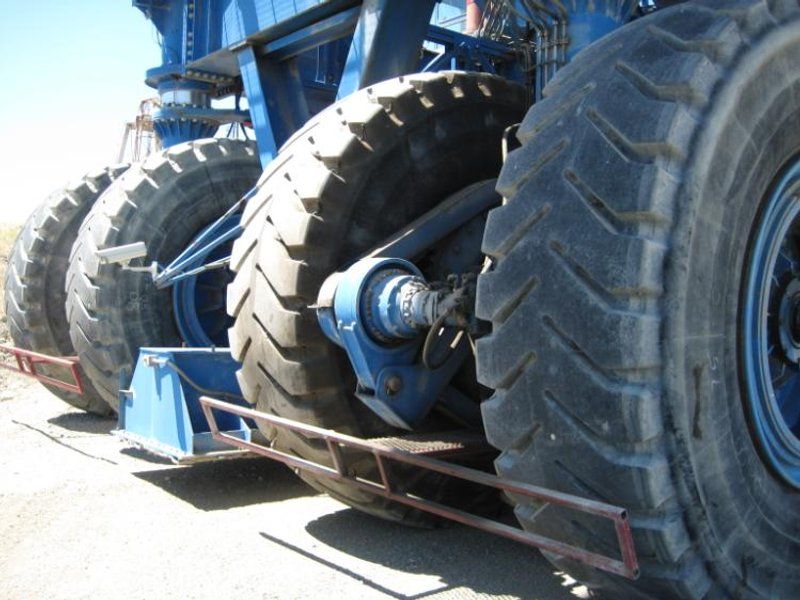

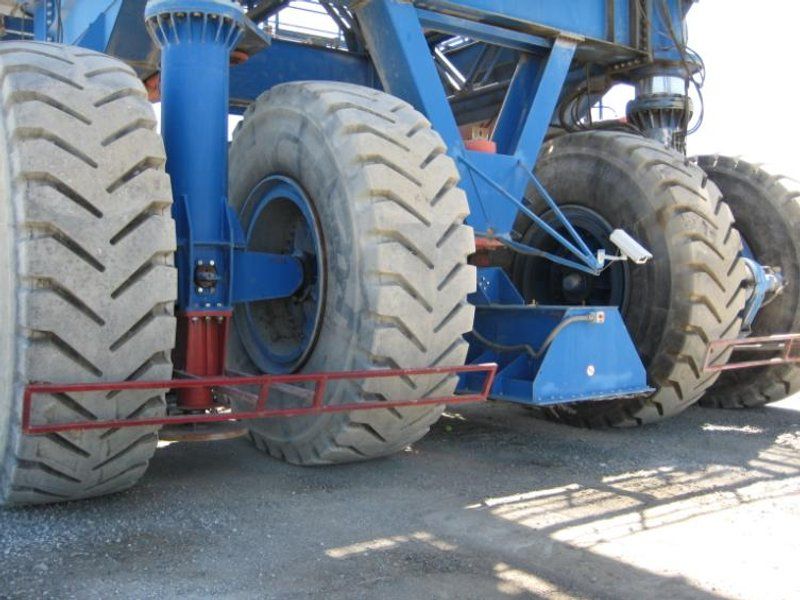

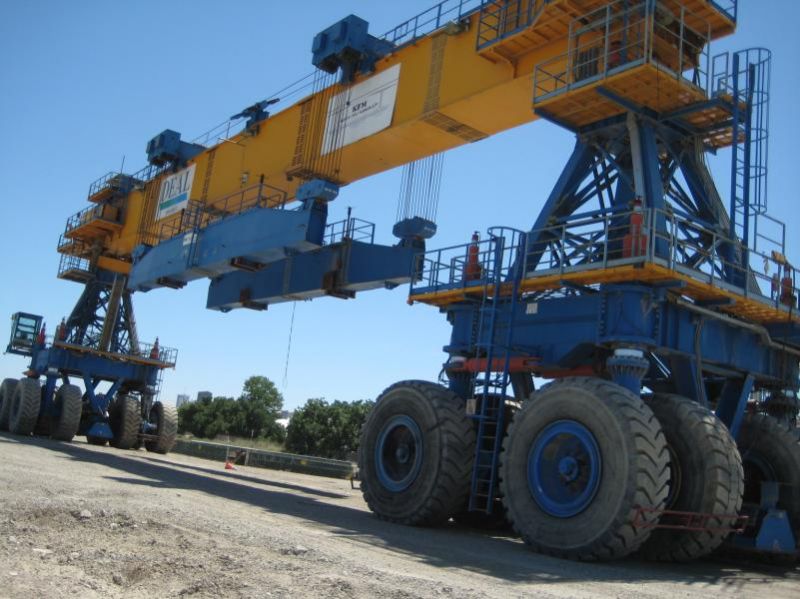

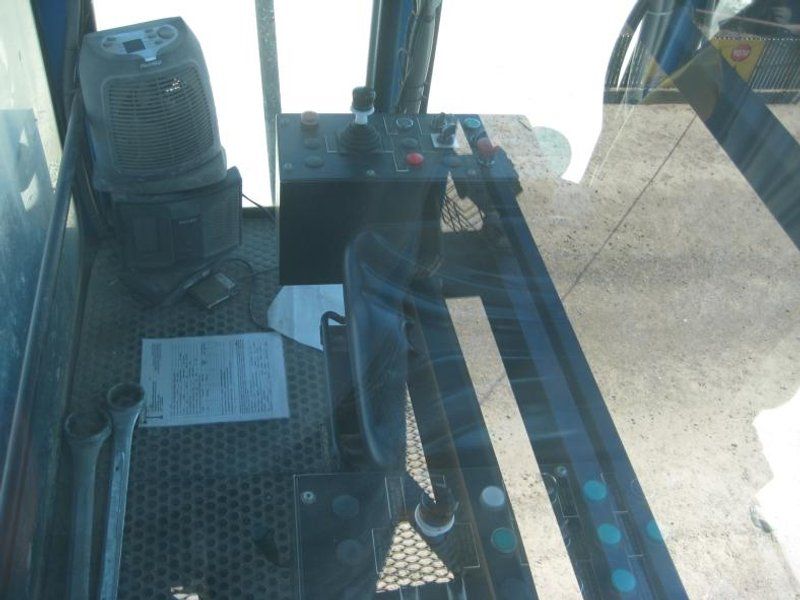

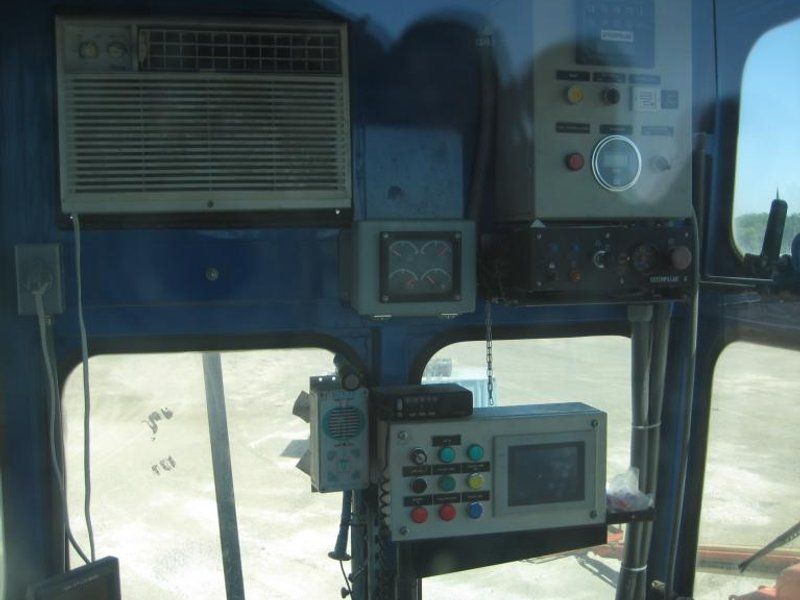

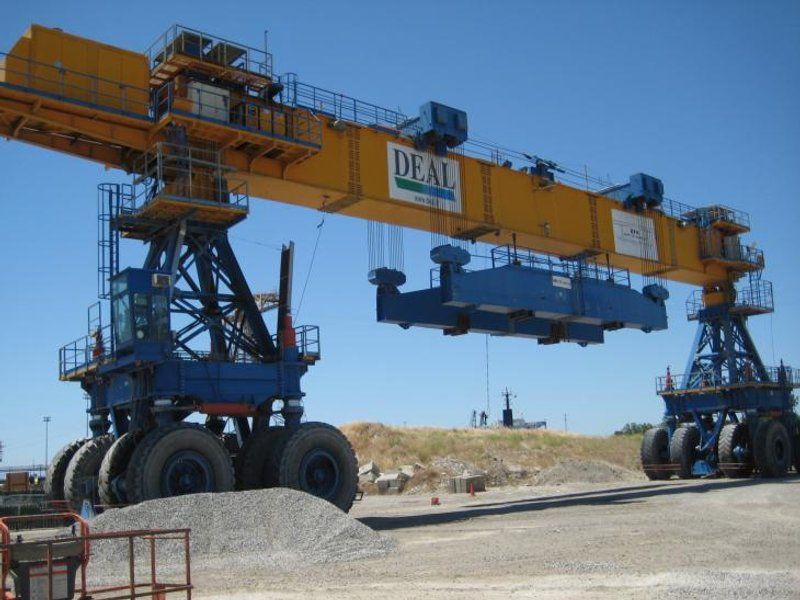

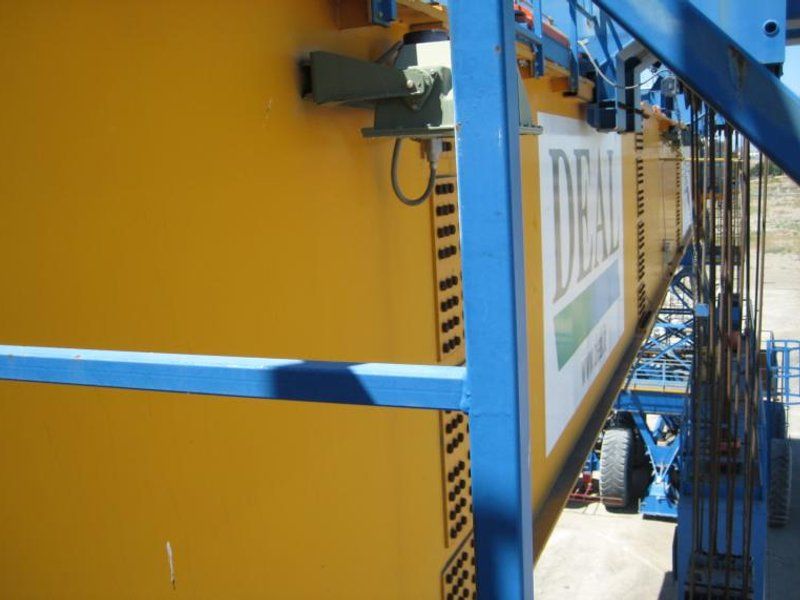

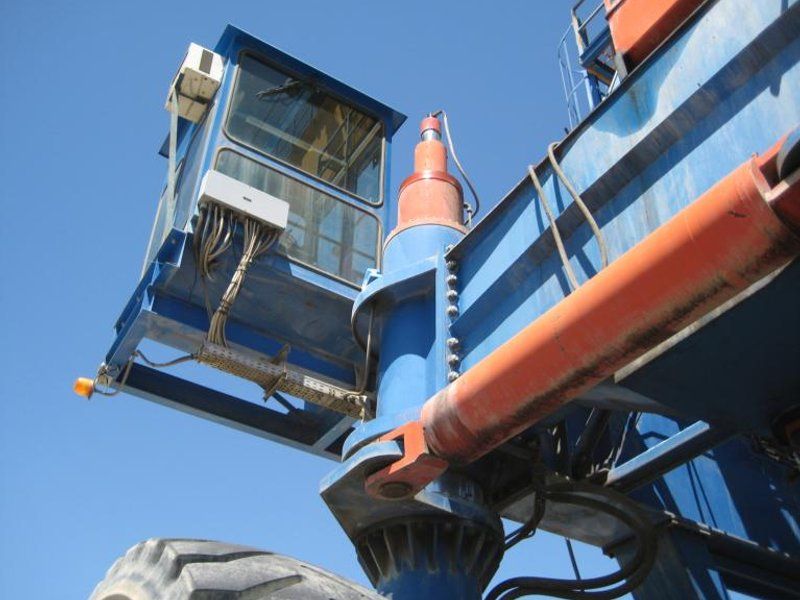

The lifting beam is mounted on 2 each steel pylons shaped like oil rigs, mounted on steer able bogies, each having 16 each rubber tires, size 37 R 57. The lifting beam bogies have 360 degree rotation and can move independently of each other, horizontal plane speed is from .3 to 2 KM/Hour. The structure is powered with a CAT C 15 diesel engine driving a hydraulic pump, each of the bogies are driven by hydraulic motors and the lifting beam is also powered by hydraulic motors, there is a 25 kW Deutz diesel generator mounted on the crane and all controls are housed in 2 enclosed pilot house modules also mounted on the crane. The lifting height of the crane is 10 meters above ground level (that can be increased), the span of the lifting beam is 41 meters. The crane can be operated by a 2 man crew. The weight of this lifting beam crane is 494,400 kg
