2008 Centerline Duplex Hydraulic
Item #: 2383
Price: Call
Description:
Available in 550 PSI and 800 PSI

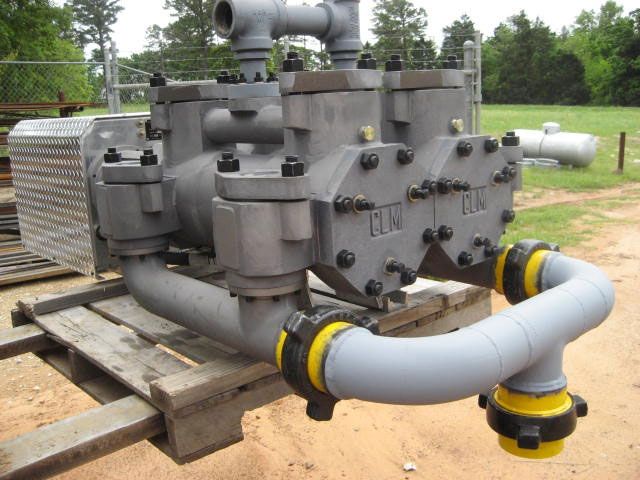

The CLM 7 ½” x 10” Duplex Hydraulic Mud Pump will fit into the place of a 5” x 6”, pumps twice the rated flow, at almost three times the pressure, and weighs half as much and is 19 ½” shorter than a 5 ½” x 8”, pumps 35% more, at over twice the rated pressure, and weighs ¼ as much.
It takes six 5” x 6” pumps (each lined with 3” liners = 13,980 lbs.) to match the rated pressure and volume of one CLM 7 ½” x 10” duplex! Specifications:
300 GPM displacement @ 800 PSI @ 40 strokes/minute 77.3” long x 34” wide x 25” high; weight 1250 lbs
**************************************************************
The CLM 7 ½” x 10” Mono Hydraulic Mud Pump will pump the same rated flow as a 5” x 6” at almost three times the rated pressure, and is ¼ the weight and is 12” narrower and 2” shorter.
It takes three 5” x 6” mud pumps (each lined with 3” liners = 6990 lbs.) to match the rated pressure and volume of one CLM 7 ½” x 10” monopump! Specifications:
150 GPM displacement @ 800 PSI @ 40 strokes/minute 180 GPM displacement @ 300 PSI @ 48 strokes/minute 77.3” long x 17 ¼” wide x 25” high; weight 625 lbs
***********************************************************************

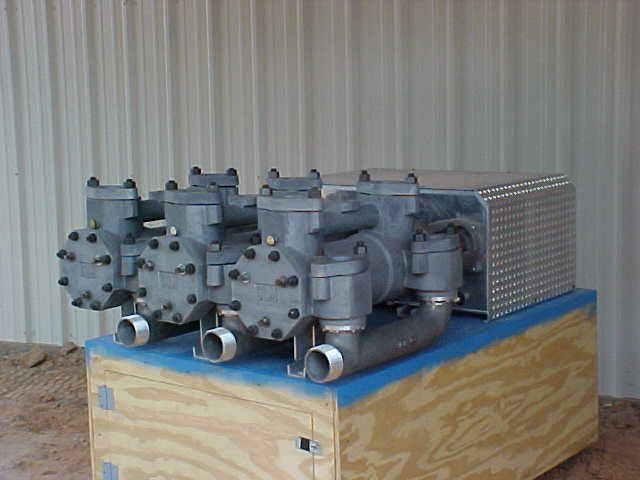

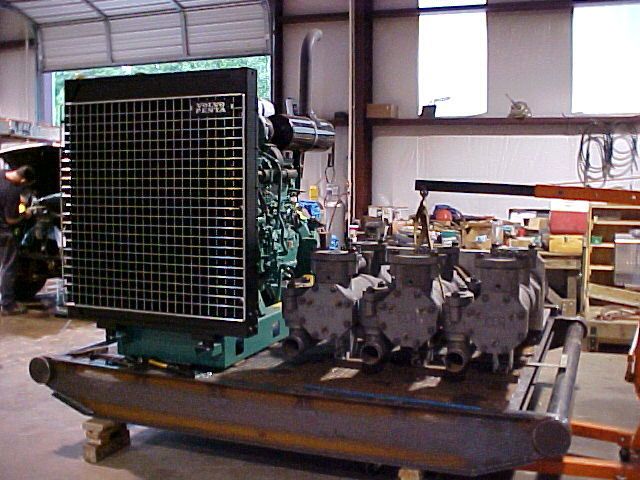

The CLM 7 ½” x 10” Triplex Hydraulic Mud Pump will pump 75% more rated flow than a 5 ½” x 10”, at almost twice the pressure, is 29.7” shorter, and weighs less than 1/3 as much.
It takes four 5 ½” x 10” pumps (each lined with 4” liners = 24, 260 lbs) to match the rated pressure and volume of one CLM 7 ½” x 10” triplex! Specifications:
450 GPM displacement @ 800 PSI @ 40 strokes/minute 77.3” long x 52” wide x 25” high; weight 1900 lbs
