1989 Demag HC1020
SOLD – This machine is no longer available.
Item #: 2260
Price: Call
Location: MN, USA
Description:
450 ton
Engine
Eng.(DN) MERCEDES 421 DSL 230 HP Jake Brake YES Miles 59,000 SHOWING AS OF 12/06 Transmission ALLISON CLBT754
Eng(UP) MERCEDES V-12 0M 424A DSL 562H Hours 8,000 SHOWING AS OF 407 Torque Converter NO
#Stages N/A
Boom/Jib
Boom 171Ft. #Sec. 4
Type POWER-PIN
Jib-118Ft. Off-setable NOdegrees
Swing-Away Lattice NO Tele NO
A-frame NO Other 177 FOOT LUFFING JIB
All Nec. Pins & Pendants For Boom YES Jib YES
Winches
Main Winch YES DRI YES
PLL YES Rope sz. 24MM OR 7/8"
A2B YES LI YES LMI YES
Aux Winch YES DRI YES
PLL YES Rope sz. 24MM OR 7/8"
A2B YES LI YES LMI YES
3rd Drum NO
Accessories

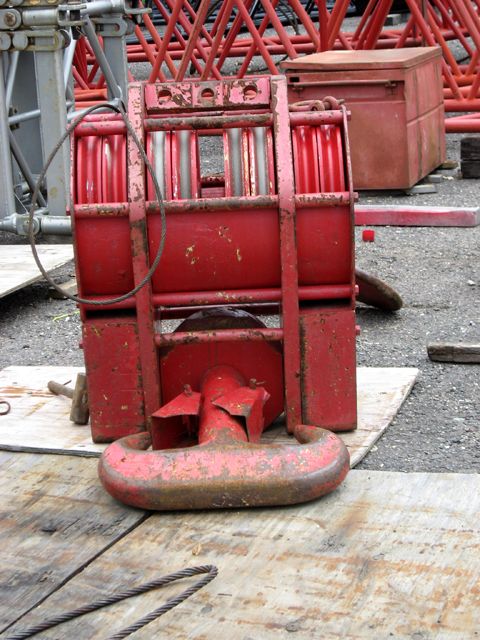

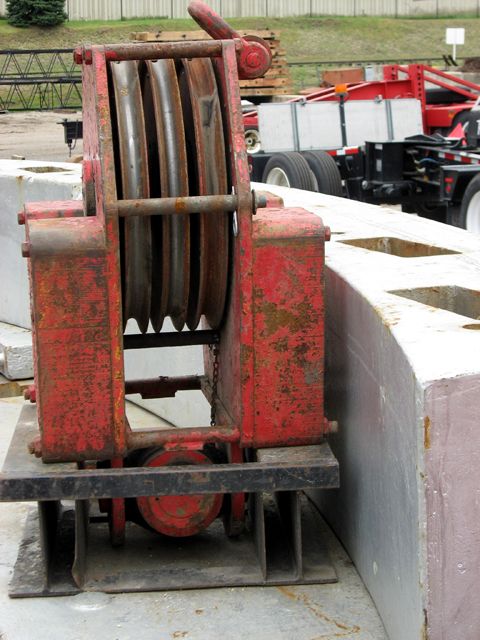

Block/Tons YES Ball/Tons YES
Truck/Crawler Lower

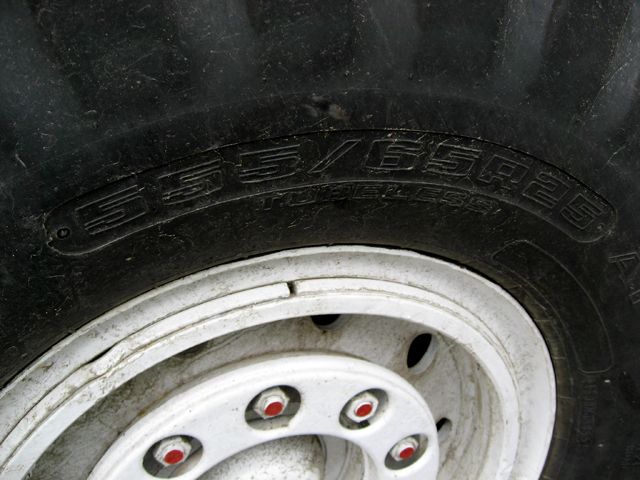

Tire Size Front AT/2A SIZE 555165R25
Tire Size Rear AT/2A SIZE 555165R25
Width 9'10 #Axles 7

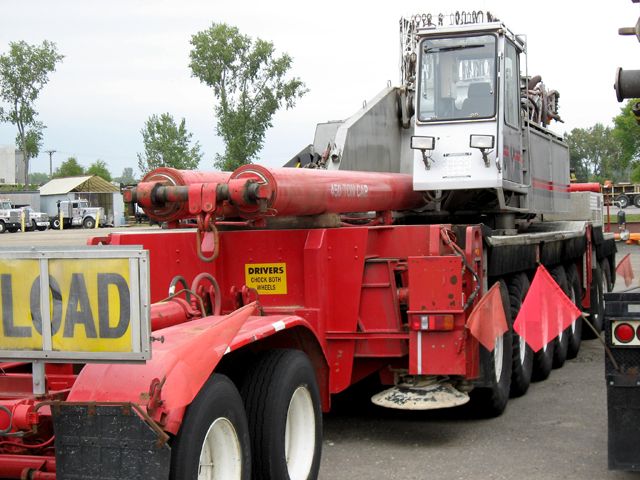

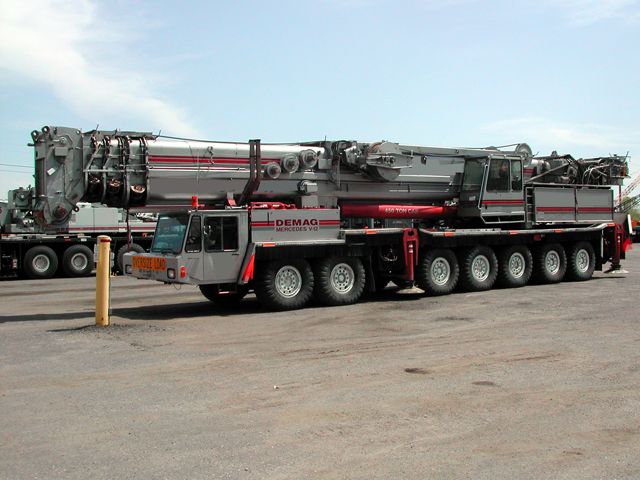

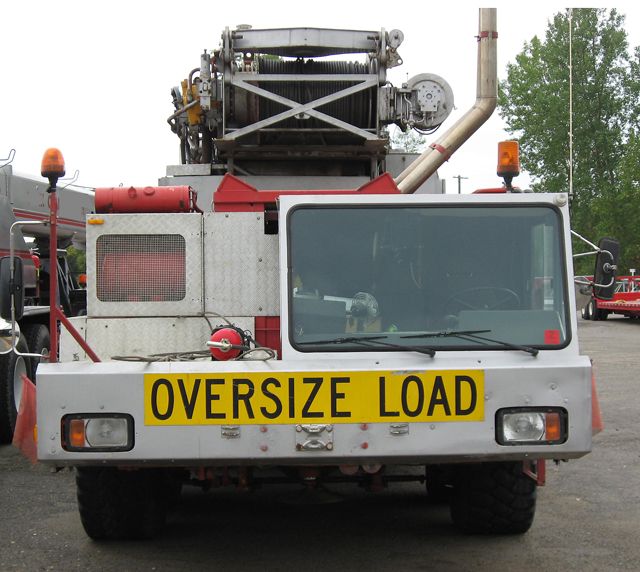

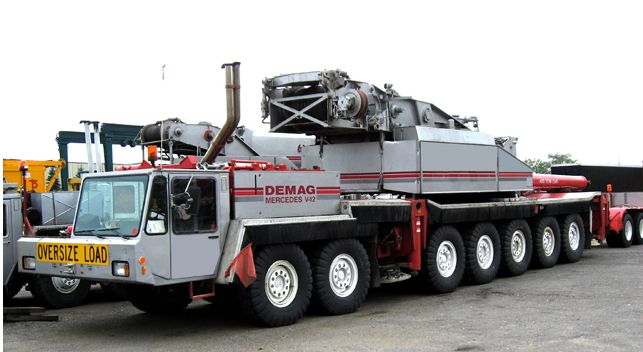

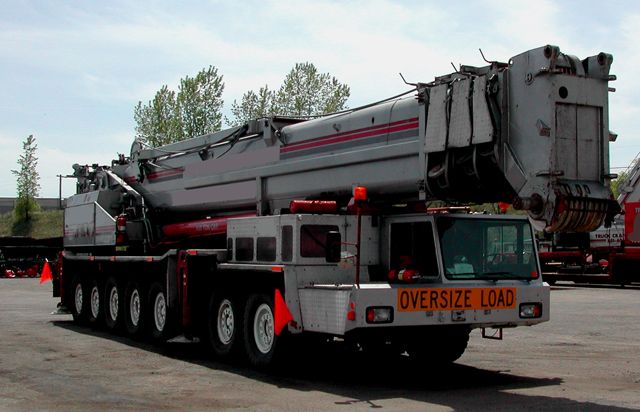

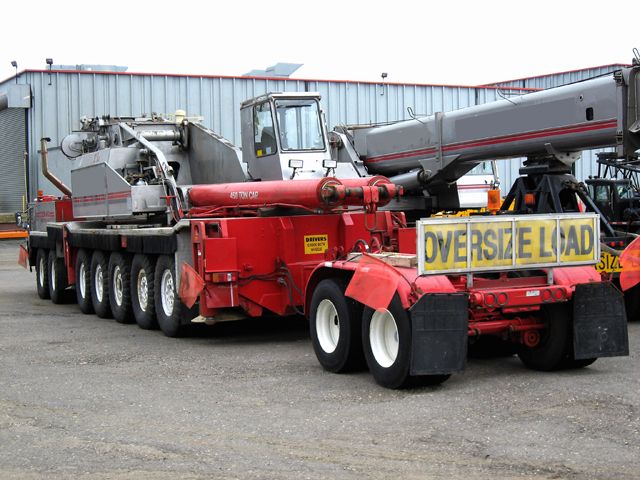

DEMAG w/7 AXLES, 14 X 6 DRIVE,
MERCEDES-BENZ V-12 0M 424A DIESEL ENGINE 562 HP, WATER COOLED ENGINE,
ALLISON TRANSMISSION WITH TORQUE CONVERTER AND HYDRODYNAMIC BRAKE,
2-SPEED TRANSFER CASE WITH LONGITUDINAL DIFFERENTIAL LOCK-OUT,

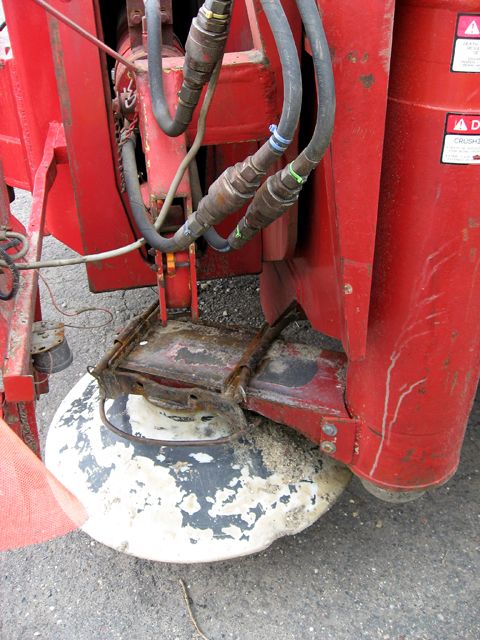

SUSPENSION ON ALL AXLES, FULLY HYDRAULIC OUTRIGGERS, ADDITIONAL FRONT

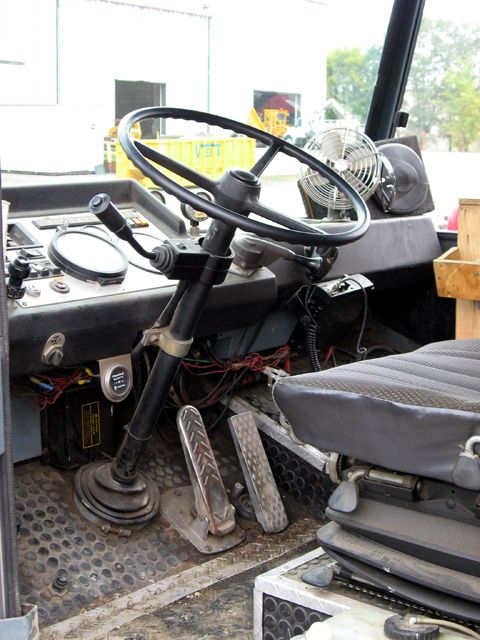

OUTRIGGER FOR 360° WORKING RANGE FLOOR-LEVEL CONTROLLED LOW-LINE 2-MAN
CAB.
CRANE IS EQUIPPED w/MERCEDES-BENZ 421 DIESEL 230 HP WATER
COOLED ENGINE, HYDROSTATIC DRIVE OF ALL CRANE FUNCTIONS, MAIN HOIST
WITH CESAR STARLIFT LEFT LAY 24MM WIRE ROPE - 1214'-110,250 POUND

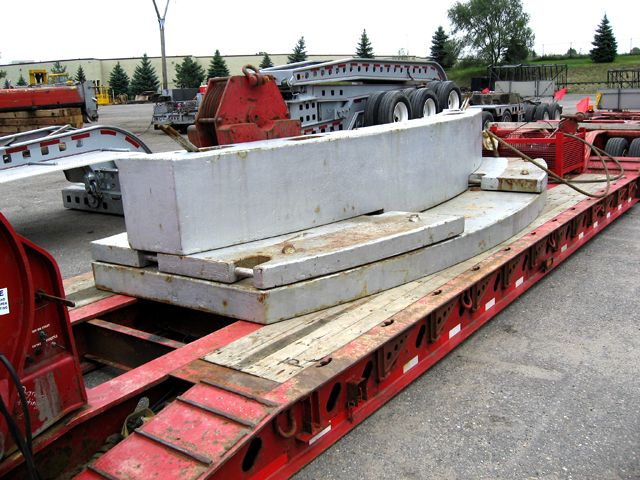

COUNTERWEIGHT, SECTIONAL, WITH HYDRAULIC COUNTERWEIGHT HANDLING JACK

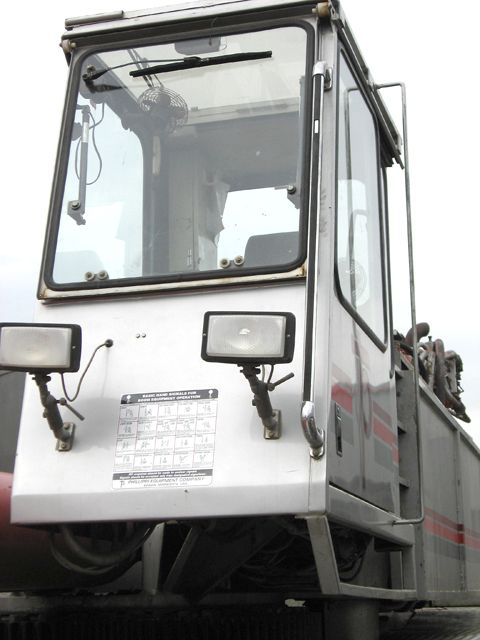

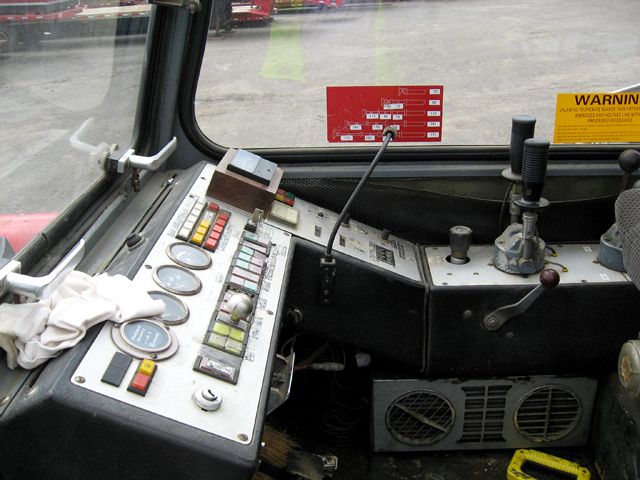

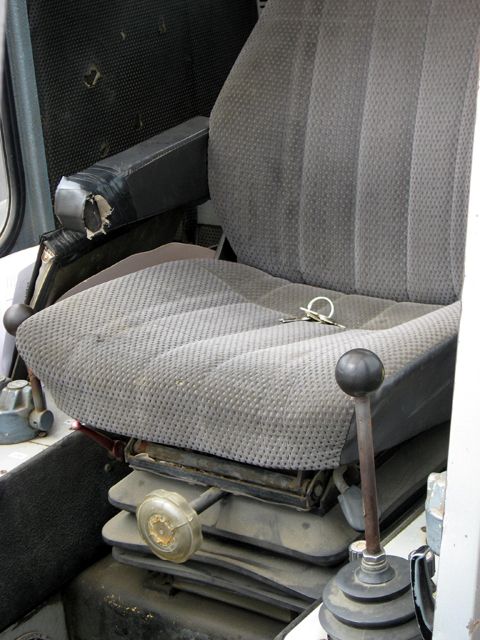

SPACIOUS, FULL-VISION 15 DEGREE HYDRAULIC BACK-TILTING CAB, SELF
CONTAINED HEATER, 4-SECTION 171' TELESCOPIC BOOM, HYDRAULICAL EXTENDING
UNDER PARTIAL LOAD, HYDRAULIC PIN-LOCKING UNDER FULL LOAD, SAFETY
DEVICES INCLUDE SAFELOAD INDICATOR WITH DIGITAL READ-OUT OF MULTIPLE
CRANE FUNCTIONS, LIMIT SWITCHES ON HOIST AND LOWERING MOTIONS.

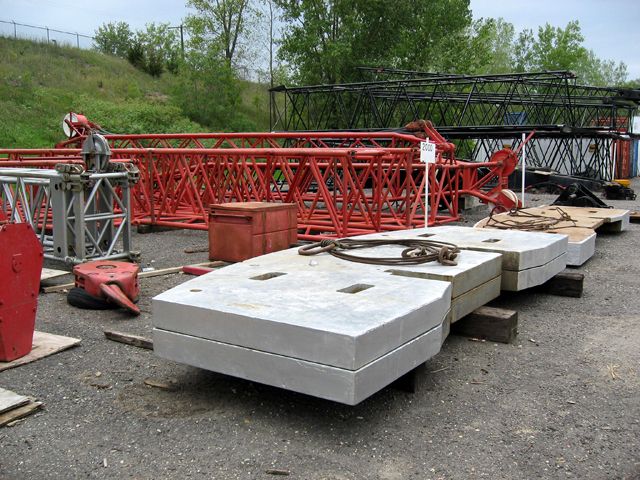

ADDITIONAL EQUIPMENT: ADDITIONAL COUNTERWEIGHT 22,050 POUNDS, OUTRIGGER
BEAMS WITH QUICK-DISCONNECT COUPLINGS, 2 DRUM ROTATION INDICATORS,
HOIST II WITH WIRE ROPE, SUPERLIFT ATTACHMENT INCLUDING ADDITIONAL

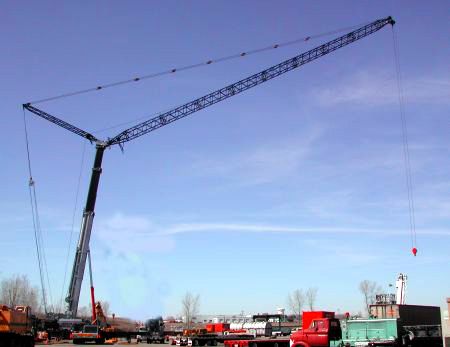

44,100 POUND COUNTERWEIGHT, 177 FOOT LUFFING JIB, ACCESSORIES FOR
CONVERSION OF LUFFING JIB INTO 118 FT FIXED JIB, HYDRAULIC
QUICK-DISCONNECT SYSTEM FOR MAIN BOOM. CRANE HAS BEEN INSPECTED,TESTED
AND CERTIFIED.
